Gnss Kolida K680N

KOLIDA
S680N-A2251900
netto Spedizione kg
  • Descrizione
  • Caratteristiche
  • Specificazioni

Kolida Gnss K680N. Il BD940 è un ricevitore a 336 canali a tripla frequenza che offre le inizializzazioni RTK e RTX più rapide e affidabili per il posizionamento in centimetri.

La scheda Gps miniaturizzata più avanzata.
Il BD940 è un ricevitore a 336 canali a tripla frequenza che offre le inizializzazioni RTK e RTX più rapide e affidabili per il posizionamento in centimetri. Il BD940 riduce le emissioni irradiate che accelera la certificazione di conformità e il time to market. Fornisce la garanzia di un funzionamento a lungo termine e senza problemi.
           Maxwell 7


               Positioning Technology

xian.jpg 336Channels


                All Constellation Signal Tracking



L Band

       OminiSTAR and RTX support

xian.jpg   540g


                 Extra light weight




  smallk3



The Most Advanced Mini Size GNSS Chip



The BD940 is a triple frequency 336 channels receiver that delivers the quickest and most reliable RTK and RTX initializations for centimeter positioning. The BD940 reduces radiated emissions which speeds compliance certification and time to market. It provides assurance of long-term future-proofing and trouble-free operation.

680n

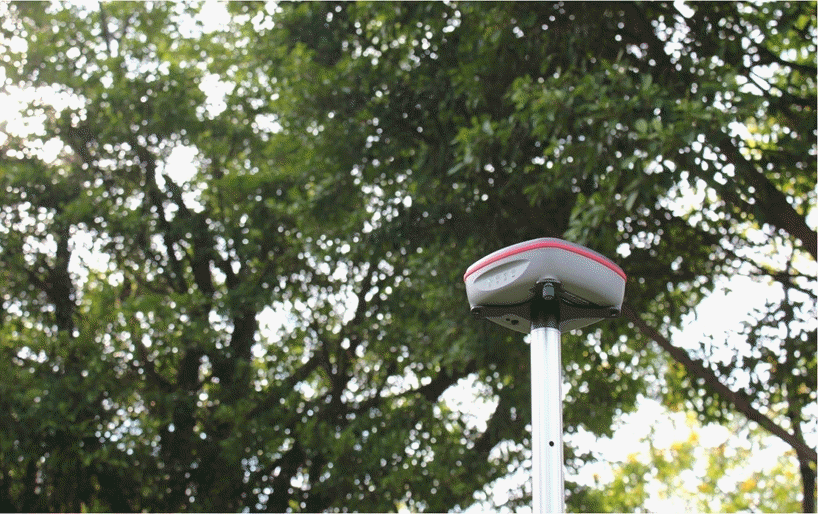

Extra Light, but Powerful.

S680N is only 540 grams but has a 6800mAh built-in battery, it has better endurance than ordinary RTK.

User can use a smart phone to operate, no need of professional controller.

User can use power bank to recharge it in the field, no need of professional power source.

6802

The Simplest In the World.

S680N has only two Keys and one Port.

Free data collection App Gistar is included in the package.


Practical Functions

S680N can works as network rover and static receivers.

1

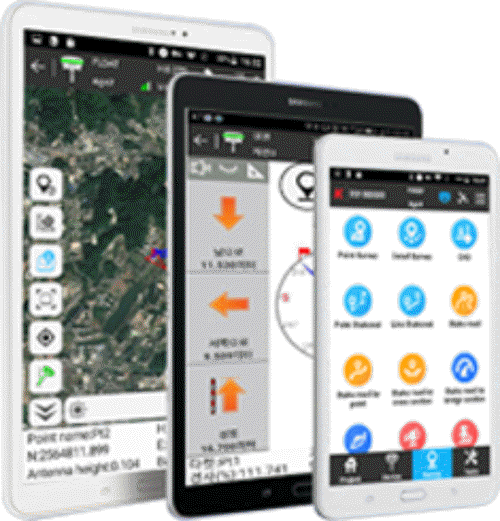

New app.   New Productivity

Windows CE data controller is too old technology?

No problem. Simply download SurvX App on your smart phone or tablet.

Enjoy the smooth operation of Android platform !

6a

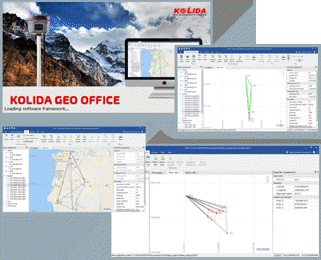

Post-processing Sw.   Free of Charge

KOLIDA GEO Office integrates

static data processing & Kinematic data adjustment

KOLIDA S680N
Satellite Tracking Ability

Channels

336

Constellation

GPS, GLONASS, BEIDOU,

GALILEO, SBAS, QZSS,

MSS L-Band

Trimble RTX, OminiSTAR

Positioning Output Rate

1Hz-50Hz

Initialization Time

<8s






Positioning Precision

Network RTK

Horizontal ±8mm + 0.5 ppm

Vertical ±15mm + 0.5ppm

RTX

Horizontal ±10cm

Vertical  ±20cm

Static and Fast Static

Horizontal ±2.5mm + 0.5ppm

Vertical ±5mm + 0.5ppm

RTK Initialization Time

2-8s

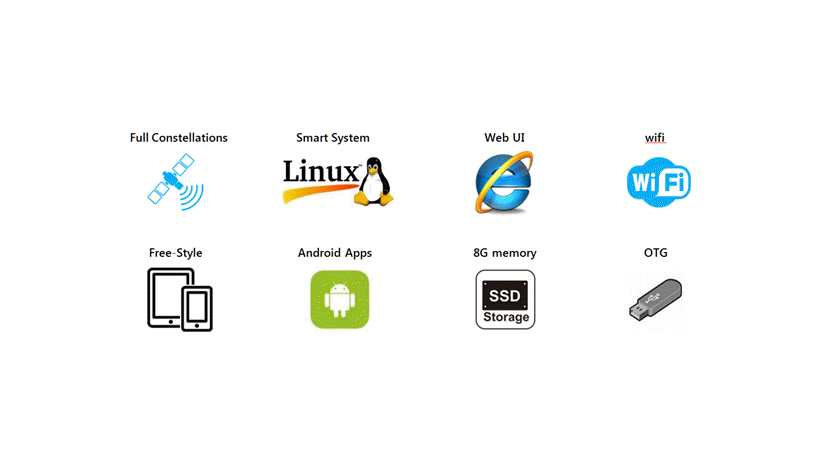

User Interaction


Operation System



Linux

Web UI

Yes

Wifi

Yes

Voice Guide

Yes

Data Storage

8GB internal;



Working Capability

Radio



N/A

Tilt Survey

N/A

Electronic Bubble

N/A

Endurance

8 hours

OTG Function (Field Download)

yes


Other Function

Mobile Reference Station (wifi)
